Hierarchical Task

A component that allows you to create and execute structured tasks with defined inputs and outputs. The Hierarchical Task component provides a framework for creating modular, reusable operations in your workflow.

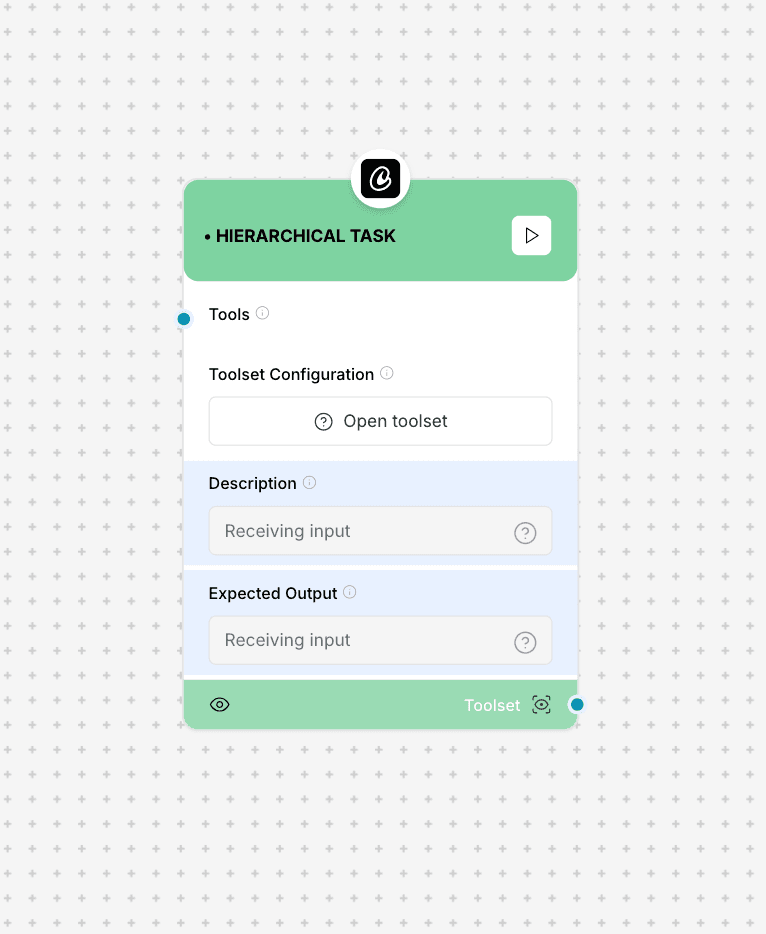

Hierarchical Task component interface and configuration

Configuration Required: You must define both the description and expected output for your task to ensure proper execution. Make sure to clearly define the parameters your task expects.

Component Inputs

Description: Detailed explanation of what the task should accomplish
Example: "Extract key information from the provided financial report including revenue, expenses, and profit margins."
Expected Output: Format specification for the task's output
Example: "JSON object containing revenue (number), expenses (number), and profitMargin (percentage)"
Tools: Specific tools the task can use during execution
Example: Selected tools might include database access, calculation helpers, or other components

Component Outputs

Task: The executed task result
Example: The completed task with the expected output format containing the requested information

Configuration Options

Task Title

The name of your task component as it appears in the workflow

Default: "Hierarchical Task"
Example: "Financial Report Analysis", "Customer Data Extraction"

Input Schema

Defines the expected inputs and their formats

Configuration through UI fields:
- Description (required)
- Expected Output (required)
- Tools (optional)

Output Schema

Defines the structure of task results

Default output:
- Task: The result of the executed task operation

Implementation Example

// Example configuration for a financial data analysis task
const financialAnalysisTask = {
  description: "Analyze the quarterly financial report and extract key metrics",
  expectedOutput: "Return a structured JSON object with the following fields:
    - revenue (number, in millions)
    - expenses (number, in millions)
    - profit (number, in millions)
    - profitMargin (percentage)
    - yearOverYearGrowth (percentage)",
  tools: ["Calculator", "DatabaseQuery"]
};

// Example integration in a workflow
function processFinancialData(reportData) {
  // Connect the task component
  const taskResult = hierarchicalTaskComponent.execute({
    description: financialAnalysisTask.description,
    expectedOutput: financialAnalysisTask.expectedOutput,
    tools: financialAnalysisTask.tools,
    context: {
      report: reportData
    }
  });

  // Use the task result in subsequent operations
  return {
    analysis: taskResult.task,
    timestamp: new Date().toISOString()
  };
}

Use Cases

Data Processing: Create structured tasks for transforming and cleaning data
Content Generation: Define tasks that generate specific content formats
Information Extraction: Pull structured data from unstructured content
Analysis Operations: Perform complex analysis with clear output requirements
Modular Workflows: Build reusable task components for larger workflows

Useful Resources

Best Practices

Be specific and detailed in your task description
Clearly define the expected output structure
Select only the necessary tools required for the task
Break complex operations into multiple smaller tasks
Use consistent naming conventions for similar tasks
Include validation criteria in your expected output
Document task components for reuse across projects
